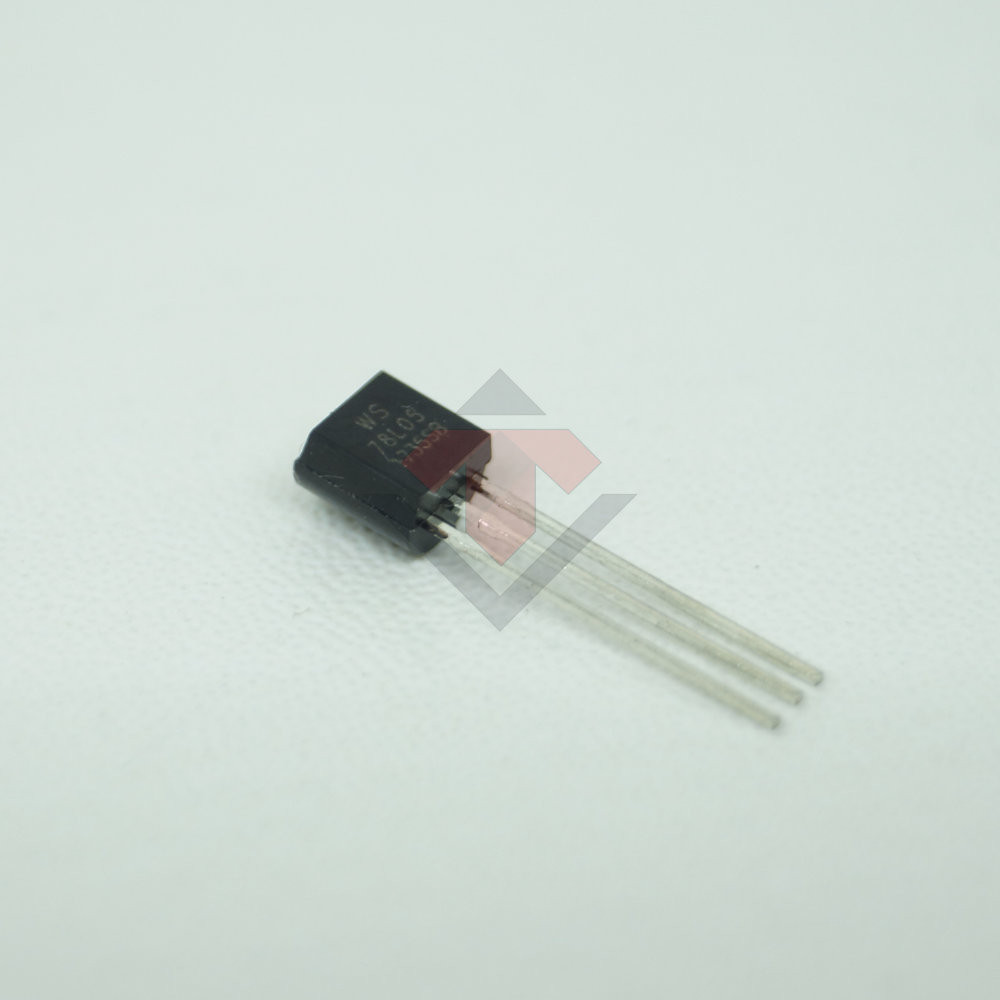

Voltage Regulator LM78LXX Series 78L05

(0 reviews)

Sold by:
TMN Studio

Price:
Rp 370 /pcs

Voltage:
Quantity:
(192 available)

Total Price:
Refund:
Share:

Pin Configuration:

Pin No.Pin NameDescription
1
Output (Vo)Outputs Regulated +5V
2
Ground (Gnd)Connected to Ground
3
Input (V+)Unregulated Input Voltage

78L05 Regulator Features:

  • 5V Positive Voltage Regulator
  • Output Current upto 100mA
  • Maximum Input Voltage is 30V
  • Operating current(IQ) is 5mA
  • Internal Thermal Overload and Short circuit current limiting protection is available.
  • Available in TO-92, SO-8 and SOT-89 package

Note: Complete Technical Details can be found at the 78L05 datasheet given at the download menu of this page.
